While living in Los Angeles and working for an angel investment bank, I had the great pleasure (and sometimes horror) of evaluating over 500 ideas and patents for funding. During that period I had witnessed an endless array of human ingenuity and fancy. WIth all ideas, however, it ultimately comes down to this:
Is it marketable? Can we sell it? Does it have an acceptable ROI?

The WindCatcher™ of Mr. Ed Mulholland answers to the affirmative the above questions and is one of those rare gems of an idea that further embodies a concept that is even more unique: simplicity.

The WindCatcher:

  • has few moving parts
  • is easily serviceable
  • has a low visual footprint and aesthetic
  • is designed to the old-time engineering principal of building to surpass a 10x failure rate -- something that is not seen in today’s throw-away world.
  • is portable and can be set up in less than one day
  • is expandable: increasing generator size is done by simply adding more generators to the stack
  • does NOT require resource consent per current New Zealand laws (it is less than 10-meters in height and does not require that a concrete pad be constructed)
  • operates at very low wind speeds and has no known upper cut-off wind speed: it is fully high-wind and chaotic wind-flow capable
  • Prototypes have been running continuosly for 10-years and 5-years without any failures  – even in winds in excess of 47.22 m/s (170 km/h).

A Solution for the Domestic Market:
New Zealand is the 2nd windiest place on Earth, however, unlike the vast wind resources of the North Atlantic which are of a laminar air-flow (non-turbulent), the air-flow of New Zealand is chaotic and poses a huge operational risk to wind turbines. VESTAS, the world’s largest wind turbine manufacturer, will not warranty any of their wind turbines sold and installed in New Zealand.

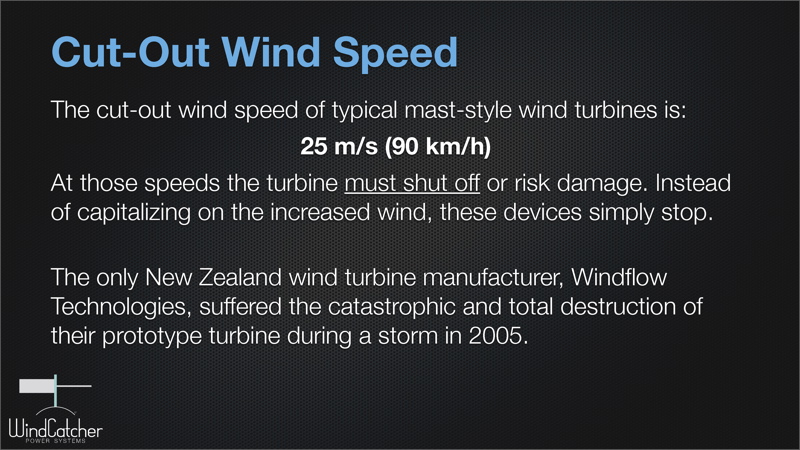

The only New Zealand wind turbine manufacturer, Windflow Technologies, suffered the catastrophic and total destruction of their prototype turbine during a storm in 2005.

The widely accepted “standard” technology of modern wind turbines simply cannot handle the ferocities of a chaotic wind pattern. Over-engineering is possible but at a cost that makes their use totally impractical.

 WindCatcher-project Page 04-300px   WindCatcher-project Page 05-300px

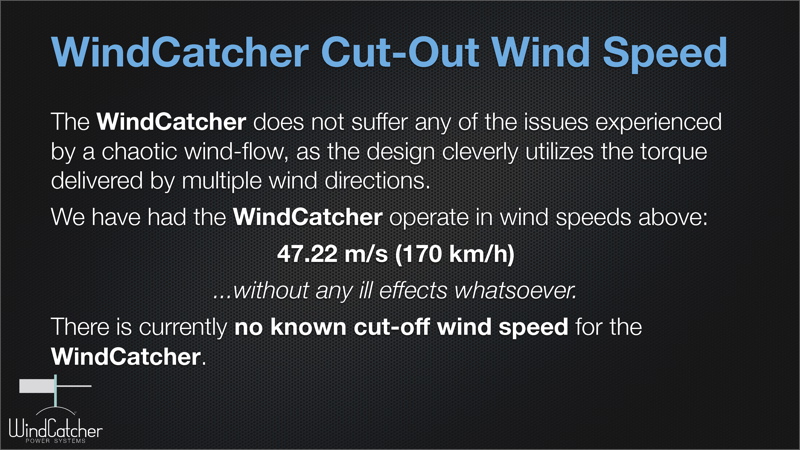

The WindCatcher does not suffer any of the issues experienced by a chaotic wind-flow as the design cleverly utilizes the torque delivered by multiple wind directions. This is why there is currently no known upper cut-off wind speed for the WindCatcher.

This makes the WindCatcher the perfect wind generator for the New Zealand market and for any arena in which infallibility is required.

International Markets:

  • Remote power installations (radar and cell sites, microwave installations, scientific research sites)
  • Military: a fully deployed unit can be drop parachuted into any arena
  • Container Ships and Military Ships can generate all of the ship’s electrical needs -- which greatly cuts down on fuel usage.
  • High-rise buildings could generate part to most of the electrical needs of the building without the perceived ‘eyesore’ of a standard wind farm.

Project Partnership:
Windcatcher Turbines Ltd. is looking for partnership to take this wind turbine to market both domestically and internationally. Fonterra has already expressed interest in purchasing the Windcatcher for the thousands of milking sheds in its co-op. However, they require the power generation data and cost figures to fully qualify the purchase.

The World Bank has expressed interest in the WindCatcher Container for bringing power to the many Pacific Island Nations and for civil emergency as the WindCatcher Container does not need any infrastructure to be built in order to be set up or used. Self-Contained power generation from 50kW to 500kW, power within hours of delivery. The 50kW unit can be dropped by parachute from a C-130.

Project Funding:
Analysis Towards Manufacturing (2nd round funding) : $1Million NZD
This will allow WindCatcher to purchase the equipment needed and hire personnel in order to develop for the project a complete manufacturing parts list and building process so that detailed cost analysis can be achieved to quickly take this product to market.

Mt Climie Project : Cost $675,000 – $1,000,000
Annual Income: $400,000 – $880,000
A WindCatcher turbine of 500kW – 1MW would be placed on Mt Climie, Wellington.

Looking forward to working with you on this most interesting project!

Sincerely Yours,
Michael Alexander Stace
(027) 508 1417





A Note About BETZ LAW

Betz Law does not apply to any ACTIVE wing design where the surface is constantly changing.

Another vertical axis wind turbine called the three blade Venturi Turbine has a measured efficiency of 85 percent, which is 40 percent higher than the theoretical maximum effiecency of 59 percent in Betz Law.

The torque generated by the WindCatcher far surpasses any output possible based on Betz Law.

Simply put, Betz Law cannot be used to determine the efficiency of the WindCatcher Active Wing design.

Vertical Axis Wind Turbines

Vertical axis wind turbines have been in use for many decades. They are a proven and quiet design. The WindCatcher turbine is currently the only patented 'active' vertical axis wind turbine that changes shape during the wind phase. This is a huge improvement in vertical axis wind turbine technology.

You can download a PDF here outlining various types of Vertical Axis Wind Turbine designs.

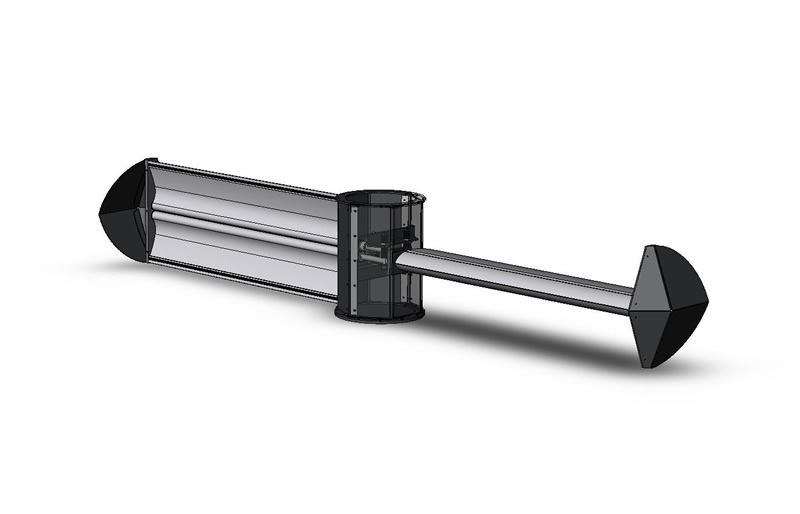

turbine-in-isometric

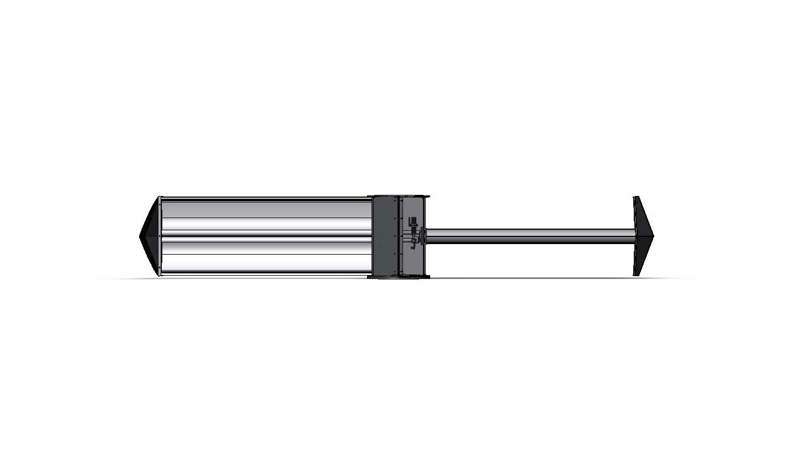

turbine-front-view

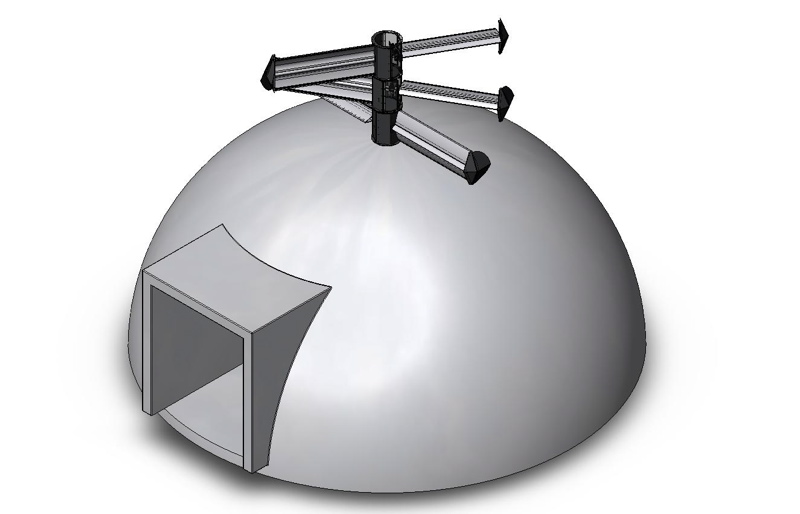

dome-with-3-stack

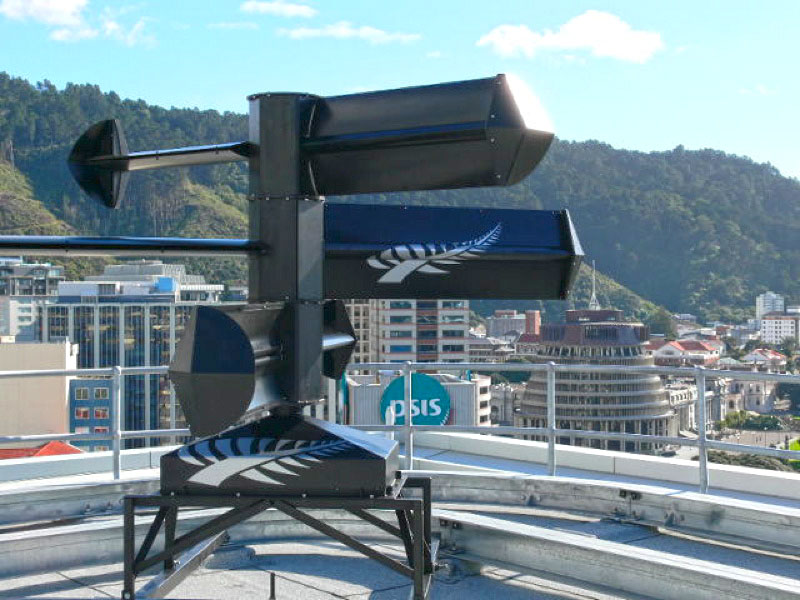

windcatcher-wellington
